ALPHAlink

NextGEN Configuration Utility for OBD1 Tuning

ALPHAlink is a modern calibration, datalogging, and diagnostics platform built for the ALPHA NextGEN emulator. It brings live ECU calibration, responsive datalogging, multimap control, analog monitoring, and detailed log analysis together in one focused desktop application.

Designed for both street and dyno tuning, ALPHAlink provides fast access to the information and controls that matter without burying the tuner in unnecessary complexity.

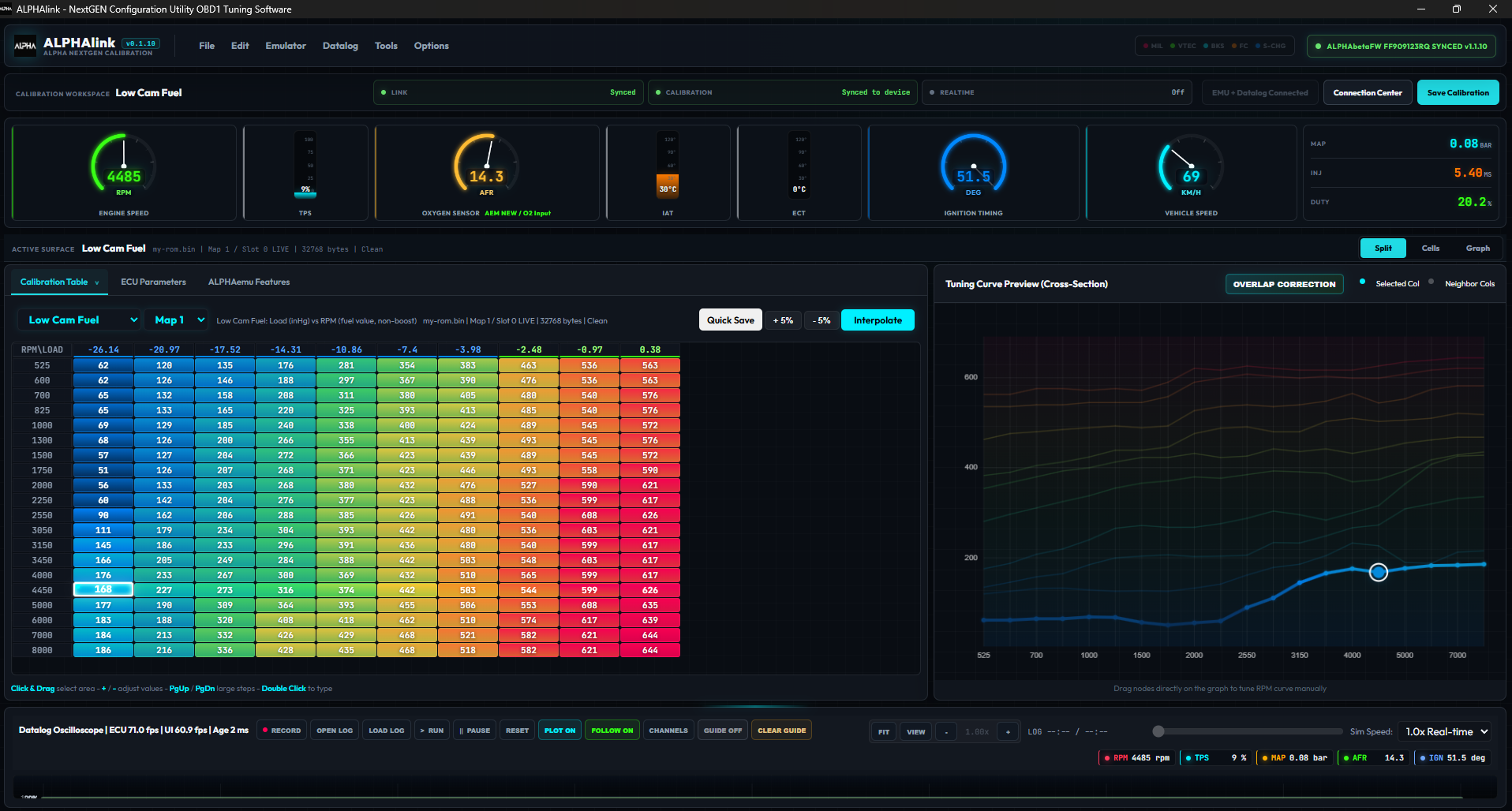

Live Calibration

Make fuel, ignition, and ECU parameter changes while the engine is running. ALPHAlink communicates directly with the emulator and applies changes to the active calibration in real time.

• Live fuel and ignition table editing

• Single-cell and quad-cell tracing

• Low-cam and high-cam table tracking

• Real-time update control

• Injector calibration and custom injector presets

• Custom MAP sensor and wideband calibration

• Boost fuel and timing compensation

• Four-map management and active-map identification

High-Speed Datalogging

View critical engine data through responsive gauges, table tracing, and the configurable Datalog Oscilloscope.

Available channels include:

• Engine speed

• Manifold pressure

• Throttle position

• Air-fuel ratio

• Ignition timing

• Injector pulse width and duty cycle

• Intake air and coolant temperature

• Vehicle speed

• Battery voltage

• VTEC state

• ALPHA NextGEN analog inputs

Channels can be assigned custom colors and displayed together for quick comparison.

Record And Review

ALPHAlink can record complete tuning sessions for later analysis. Saved logs retain the calibration and table information needed to recreate the tuning session accurately.

During playback you can:

• Navigate the complete log timeline

• Inspect exact values with the oscilloscope cursor

• Scrub smoothly through recorded data

• Follow fuel and ignition table activity

• Review cell tracing at any point in the log

• Compare measured AFR against target AFR

• Calculate suggested fuel corrections

USB And Bluetooth

Connect directly over USB or use a supported ALPHA NextGEN Bluetooth bridge.

Bluetooth mode combines emulator communication, datalogging, and analog monitoring through one wireless connection. ALPHAlink automatically manages communication priorities during calibration updates to keep tuning responsive and reliable.

ALPHA NextGEN Integration

ALPHAlink is designed around the capabilities of the ALPHA NextGEN emulator:

• Four persistent 32 KB calibration banks

• Live map switching

• High-speed real-time updates

• Eight analog input channels

• Device serial identification

• Encrypted firmware servicing

• Automatic emulator and datalog port discovery

• USB and Bluetooth operation

Protected Calibration Files

ALPHAlink supports protected calibration project files for tuners who need to preserve control over their work. These files help prevent casual extraction or modification of calibration data outside the ALPHAlink environment.

Standard binary files remain supported for compatible import and emulator programming workflows.

Built For Different Systems

The interface adapts to a wide range of desktop and laptop resolutions. Display options include responsive scaling, multiple application themes, and an optimized Lite Mode for lower-spec computers.

Compatibility

ALPHAlink is intended for use with supported OBD1 ECU calibrations and the ALPHA NextGEN emulator. Available parameters and tables depend on the selected base calibration and ECU configuration.

Important Notice

Engine calibration can affect performance, emissions, reliability, and vehicle safety. ALPHAlink is intended for qualified users who understand ECU tuning and accept responsibility for all calibration changes. Always verify fuel delivery, ignition timing, sensor calibration, and engine operation using appropriate equipment.
